This WIFI module is suitable for: desktop computer, netbook, MID (tablet computer), set-top box, monitoring camera, internet radio, digital photo frame, fitness equipment, medical equipment, lighting control, door lock
control, logistics network monitoring Devices, etc. need to use various applications of wireless data transmission.
Features:
802.11b:1,2,5.5,11Mbps;802.11g:6,9,12,18,24,36,48,54Mbps.
802.11n:(20MHz)MCSO-7,Support up to 72Mbps;(40MHz)MCSO-7,Support up to 150Mbps.
OFDM,Peak rate 150Mbps,Peak throughput 90Mbps。
Security support for 64/128 WEP,WPA,WPA2,TKIP,AES.
Operates in 2.4GHz frequency bands,Power Management.
Antenna configuration:I-PEX receptacle for extemal antenna.

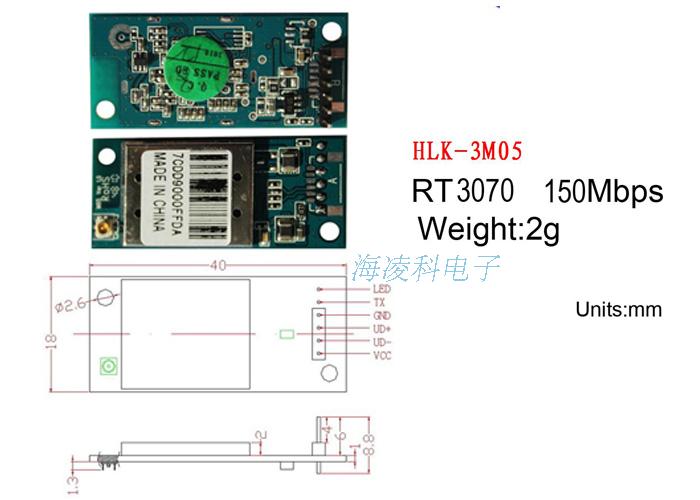

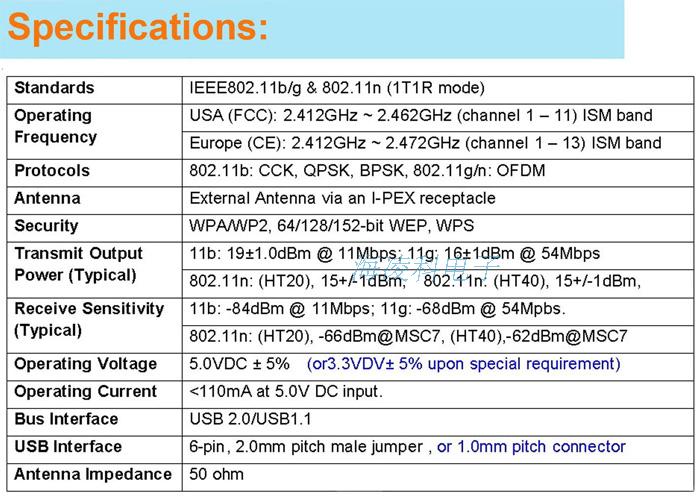

Standards | IEEE802.11b/g&802.11n(1T1R mode) |
OperationFrequency | USA(FCC)2.412GHz~2.462GHz (channel1 -11)ISM bandEurope(CE):2.412GHz~2.472GHz(channel1-13)ISM band |
Protocols | 802 .11b:CCK,QPSK,BPSK,802.11g/n:OFDM |
Antenna | External Antenna via I-PEX receptacle |
Security | WPA/WPA2,64/128/152-bit VEP,VPS |
Transmit OutputPower (Typical) | 11b:19±1.0Bm @11Mbps ;11g:16±1.0Bm @54Mbps;802.11n:(HT20),16+/-1dBm;11n:(HT40),-62dBm@MSC7 |
Receive Sensitivity(Typical) | 11b:-84dBm @ 11Mbps(Typical);11g:-68dBm @ 54Mbps802.11n:(HT20),-66dBm @ MSC7,(HT40),-62dBm@MSC7 |
Operating Voltage | 5.0VDC±5% (or 3.3VDV±5% upon special requirement) |
Operating current | <110mA at 5.0V DC input. |
Bus Interface | USB 2.0/USB1.1 |
USB Interface | 6-pin,2.0mm pitch male jumper,or 1.0mm pitch connector |
Antenna Impedance | 50ohm |
Software and system Informatiom
Operation System | CPU Supplier | Driver |
Linux2.4/2.6 | ARM,MPSLL | Available |
Windows 2000×P/Vista | X86 Platform | Available |
Windows CE5.0/6.0 | ARM,MIPSLL | Available |
Compatible with 802.11 b / g / n
USB2.0 /1.1, 2.4GHz, ISM band
Peak rate: 150Mbps
IPEX seat, external antenna
Security mechanism: WHQL; Cisco CCX,
Operating system: Linux 2.6 X; Mac OSX, Windows CE, Windows 2000 / XP / Vista / 7
Working voltage: 3.3VDC (or 5VDC) /-5%
USB interface: 6-pin, 2.0mm pitch pin
40.0 x 18.0 x 8.8 (needle height) mm
Hardware |
Chipset | Ralink RT3070 |
Host interface | USB2.0/1.1, type A |
LEDS | Link/ Activity |
RF |
Antenna | Built-in PCB antenna |
Frequency | 2412~2483.5MHz, ISM band. |
Transmit Power | 802.11b:17+/-1.5dBm; 802.11g:14+/-1.5dBm |
Receive Sensitivity | 802.11b:-84+/-1.5dBm@11Mbps; 802.11g:-69+/-1.5dBm@54Mbps |
Software |
Operation System | Windows CE/2000/XP/Vista; Linux 2.6.X;Mac OS X |
Security | WEP 64/128bit,WPA,WPA2,802.1X ,Cisco CCS V1.0,2.0 and V3.0 Compliant. |
Operation Conditions |
Voltage Range* | DC 5.0V±5% |
Operating Temperature | 0℃-50℃ |
Storage Temperature | -20℃-70℃ |
Operating Humidity | RH 95%(Non-Condensing) |
Storage Humidity | RH 95%(Non-Condensing) |
Chipset: Ralink RT3070 |
Standard: 802.11N compliance, Peak rate: 150Mbps |
Frequency: 2.4GHz, ISM band |
External antenna via IPEX receptacle |
Host interface: USB 2.0/1.1, |
USB Connection:6-pin. 2.0mm pitch male jumper |
Operation System: Windows CE/2000/XP/Vista |
Security:WHQL;Cisco CCX Linux2.6X;Mac OSX |
Operating Voltage:5.0 VDC +/- 5% |
Size: 40x18x8.7( PIN height)mm |
